Select your NPC Setup

The first option and section below is for creating UI only NPCs that don’t need a full NPC character in a world. If you want to create an NPC that exists physically in the game world, select the Open World NPC section.

UI Only NPCs

Open World NPCs

​
UI Only NPCs

For help reference the two demo scenes named DemoChat and DemoChatMobile inside Assets → GladeCore → Scenes. We also provide the prefabs inside Assets → GladeCore → DemoAssets → LLM if you do not want to create it from scratch. Below are the steps to create UI only NPCs:

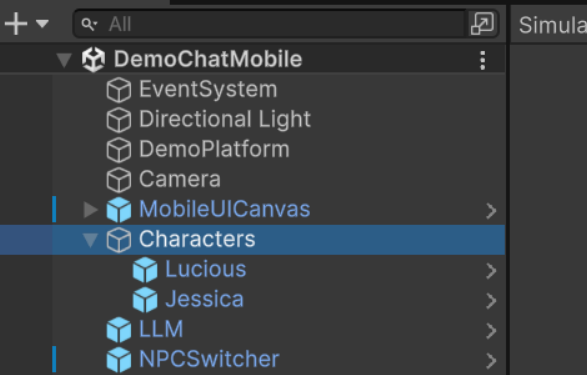

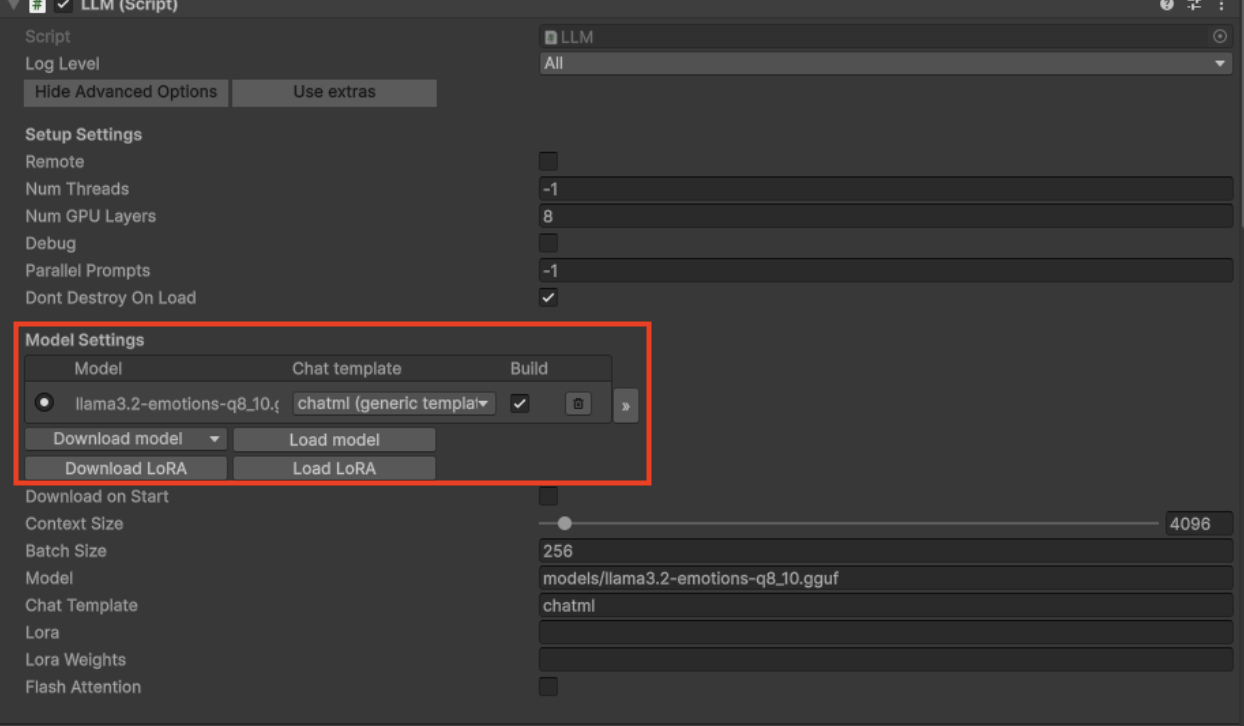

  1. Add the LLM prefab or create an empty GameObject and add the scripts named LLMServiceManager, LLMUnitySafeShutdown, and ChatHistoryLoader. Then load the model in the LLM section like we did in the previous step. The LLM prefab needs a model applied in this script section or the inference won’t work. Unity LLM Object Post Download Example Pn Make sure your scene hierarchy looks the same as the one below with all your characters in the scene. Unity Scene Hierarchy UI Only NP Cs Pn

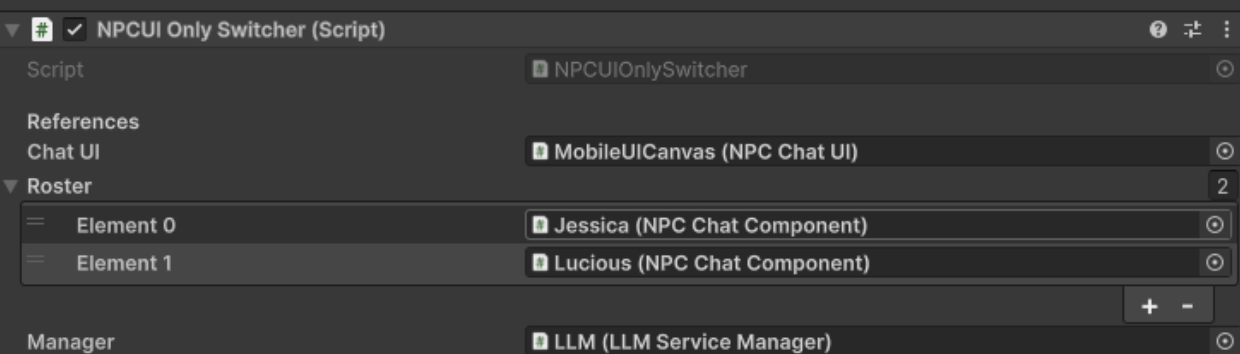

  2. Add the NPCSwitcher Prefab to the scene or add an empty GameObject and add the script NPCUIOnlySwitcher. In the NPC Switcher make sure the below values are assigned. Once all filled out, your NPCs should be all set to use within the scene. The following “Using the NPCs” section will cover how to swap NPCs in scene and reset context. Unity NPC Switcher UI Filled Pn

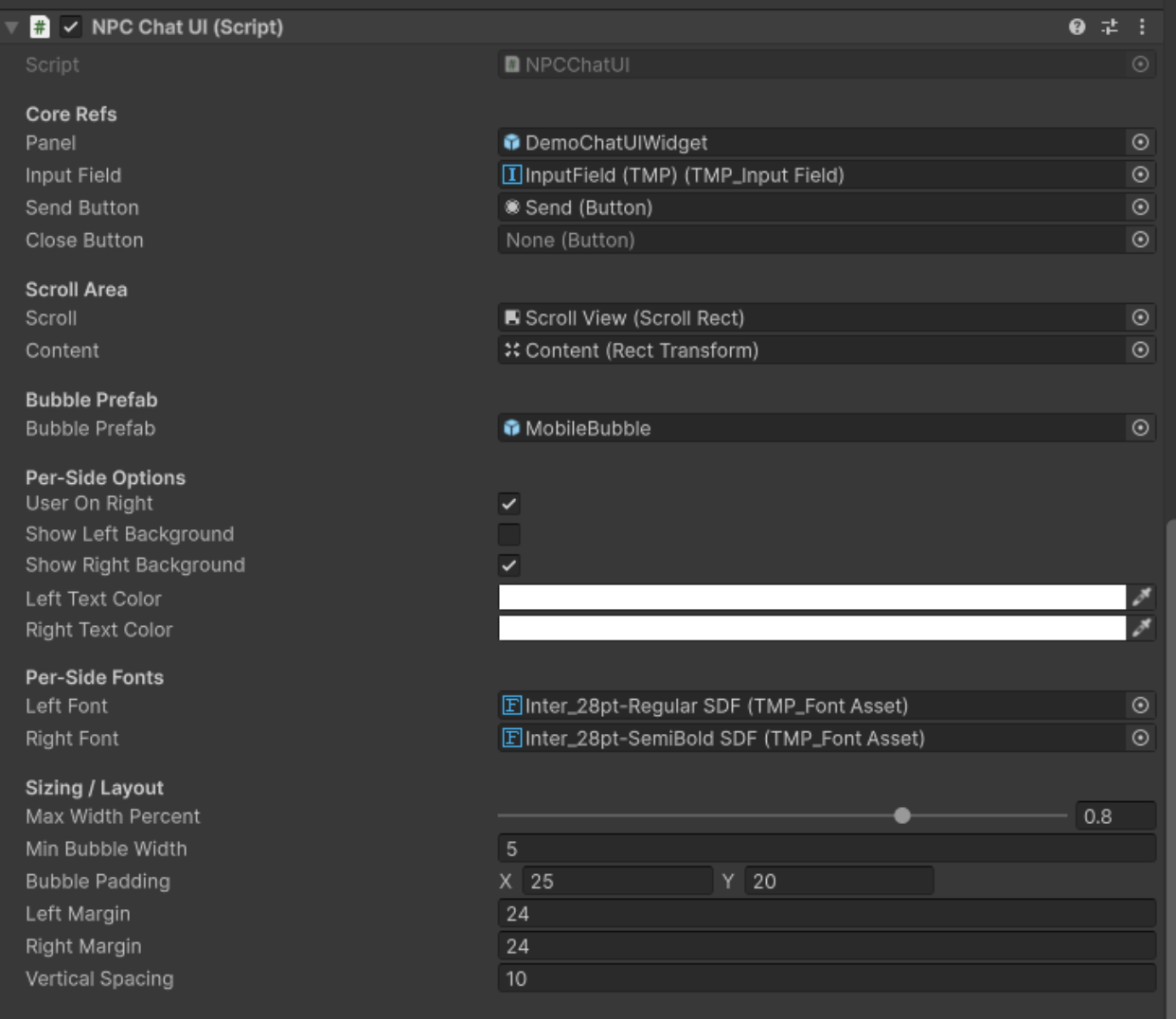

  3. Add your Canvas by using one of the prefabs inside Assets → GladeCore → DemoAssets → UI (Use the non demo UI canvas so there is no demo wording). The Canvas is where you can edit everything from bubble sizing to panels and more. You are able to customize your own panel if you would like by swapping out the assets just to make sure that they have the corresponding fields with a content and scrollbox so that it works the same. You can also change the bubble prefabs and swap them out for buttons, different looking bubbles, or whatever you desire as it can be implemented to your needs. Unity NPC Chat UI Canvas Filled1 Pn
    1. Look through the canvas and make sure each thing aligns with your gameplay needs. Most will not need to be changed as it has most end cases covered and is mostly cosmetic. If you do not want a close button do not assign the button and uncheck the close on escape otherwise assign the button and it will work on click or escape button. The Enable Open Hint field is for the “Start Chatting” that appears when opening and closing. Leave it blank for UIs that do not open and close so it does not get in the way. Make sure to enable/disable action mappings that you do not want to happen when the UI is enabled (movement or other UI systems) using Keep Enabled Action Maps and Disable Action Maps.

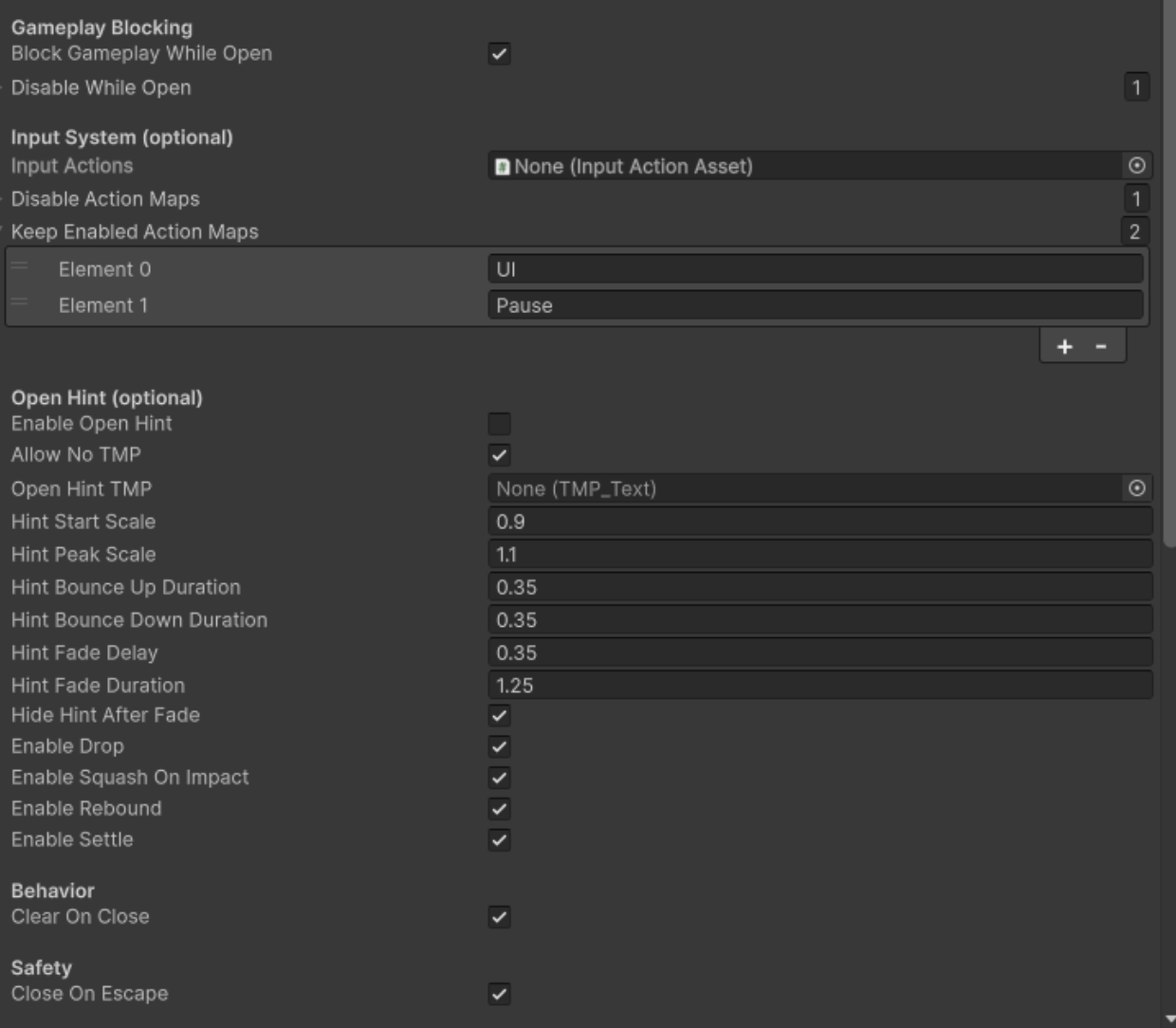

    Unity NPC Chat UI Canvas Filled2 Pn
If you are only making UI Only NPCs, skip the following Open World NPC section by clicking here.

​
Open World NPCs

For help reference the demo scene named DemoNPCs inside Assets → GladeCore → Scenes. We provide the prefabs inside Assets → GladeCore → DemoAssets → LLM as well if you do not want to create it from scratch.
  1. Add the LLM prefab or create an empty GameObject and add the scripts named LLMServiceManager, LLMUnitySafeShutdown, and ChatHistoryLoader. Then Load the model in the LLM section like we did in the previous step. The LLM prefab needs a model applied in this script section or the inference won’t work. Unity LLM Object Post Download Example Pn If you want persistent context saved across multiple games, enable persistence and DO NOT CHANGE the Streaming subfolder from saves and location unless you change every reference in code and this is something you specifically want/need to do. Persistence needs to be enabled if you want to close the chat and come back to a chat with any NPC in the world. If it is disabled it will start a new conversation when you close and come back.
  2. Add your Canvas by using one of the prefabs inside Assets → GladeCore → DemoAssets → UI (the Demo UI has instructions on the screen). The Canvas is where you can edit everything from bubble sizing to panels and more. You are able to customize your own panel if you would like by swapping out the assets just to make sure that they have the corresponding fields with a content and scrollbox so that it works the same. You can also change the bubble prefabs and swap them out for buttons, different looking bubbles, or whatever you desire as it can be implemented to your needs. Unity NPC Chat UI Canvas Filled1 Pn Look through the canvas and make sure each thing aligns with your gameplay needs. Most will not need to be changed as it has most end cases covered and is mostly cosmetic. If you do not want a close button do not assign the button and uncheck the close on escape otherwise assign the button and it will work on click or escape button. The Enable Open Hint field is for the “Start Chatting” that appears when opening and closing. Leave it blank for UIs that do not open and close so it does not get in the way. Make sure to enable/disable action mappings that you do not want to happen when the UI is enabled (movement or other UI systems) using Keep Enabled Action Maps and Disable Action Maps. Unity NPC Chat UI Canvas Filled2 Pn

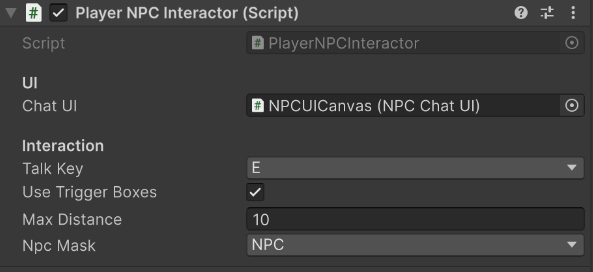

  3. Add your player prefab to the scene and attach the script PlayerNPCInteractor so that the player can interact with an NPC based on a radius or trigger box. In the NPC Switcher make sure that these values are assigned. Unity Player NPC Interactor Filled Pn
Now your NPCs should be all set to use within the scene. Look at next Using the NPCs section to understand how to use the NPCs further. (We will update to allow new input system soon)
